Polytek
Slo-Kast BC-8009 20lb Kit
Slo-Kast BC-8009 20lb Kit
4 in stock
Couldn't load pickup availability
BC-8009 is a two-part, urethane tooling resin that cures (RTV) to a gray, Shore D85 plastic. This resin offers a longer pot life (14-18 min.) compared to other products in the Kast Series, but still offers a relatively fast demold time (3-4 hr.) for fast turnaround of parts. BC-8009 is often used for filling larger closed mold cavities and for casting larger sections without the need for stage pouring. Common applications include; tracing models, core boxes, keller aids, patterns, core sticks, vacuum form tools, prototypes and display parts.
WARNING: This product can expose you to chemicals including Benzene, Cumene and Dibutyl Phthalate which are known to the State of California to cause cancer and/or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
FOR INDUSTRIAL/PROFESSIONAL USE ONLY.
| Property | Value |
|---|---|
| Mix Ratio by Weight | 1A : 1B |
| Mix Ratio by Volume | 1A : 1B |
| Shore Hardness | D85 |
| Pot Life | 14-18 min |
| Demold Time | 3-4 hr |
| Cured Color | Gray |
| Mixed Viscosity | 2,250 cP |
| Specific Gravity | 1.8–1.9 |
| Specific Volume | 15 in³/lb |
| Linear Shrinkage | 0.0002 in/in |
| Heat Deflection Temp. | 173°F |
| Tensile Strength | 5,850psi |
| Flexural Strength (5% Strain) | 6,900psi |
| Compressive Strength | 8,800psi |
Notes: Shake or stir Part A & Part B before use. Demold time varies with thickness of casting — thinner castings take longer to demold.

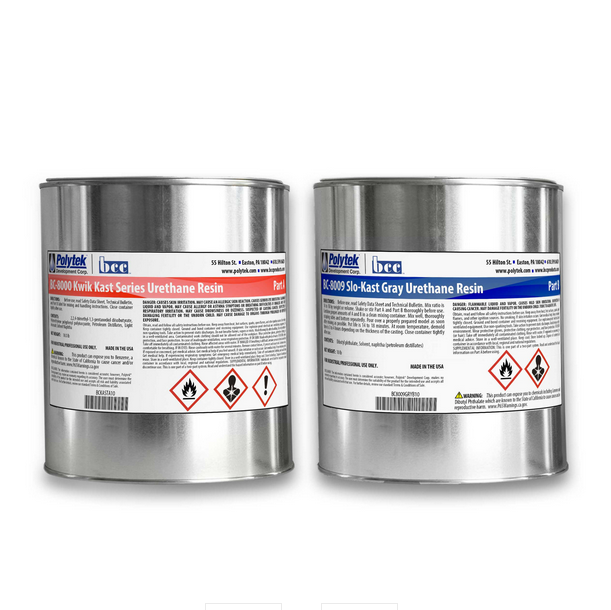

| BC-8009 Clo-Kast Gray Urethane Resin | Components |
|---|---|
| 20-lb kit includes: | 10 lb of BC-8009 Part A (~1 gallon) 10 lb of BC-8009 Part B (~1 gallon) |
