PlatSil® 73-20 Silicone Rubber is a two-part, platinum-catalyzed, liquid silicone system that cures (RTV) to a blue translucent, Shore A20 rubber. Compared to other silicones in the PlatSil® 73-Series line, this option sets quickly with a demold time of 1 hour (at room temperature). The transparency of PlatSil® 73-20 is useful for molds that need to be cut after cure – parting lines can be better determined because the model is visible. This is a pourable rubber, but it can be easily thickened with PlatThix Liquid Thickener or Fumed Silica for brush-on application.
FOR INDUSTRIAL/PROFESSIONAL USE ONLY.
Technical Specifications
Mix Ratio by Weight:1A:1B
Shore Hardness:A22
Pour Time:5 min.
Demold Time:1 hr.
Cured Color:Blue, Translucent
Mixed Viscosity:3,000 cP
Specific Volume:25 in³/lb
Specific Gravity:1.1
Elongation:460 %
Tensile Strength:230 psi
Die B Tear Strength:45 pli
Die T Tear Strength:17 pli
Cure Inhibition:Contamination from sulfur (e.g., sulfur-based clay), amines, tin compounds, cured polyester resin, some paints and some silicone rubbers may inhibit surface cure of platinum-cured rubbers.
Technical Bulletin
Safety Data Sheet

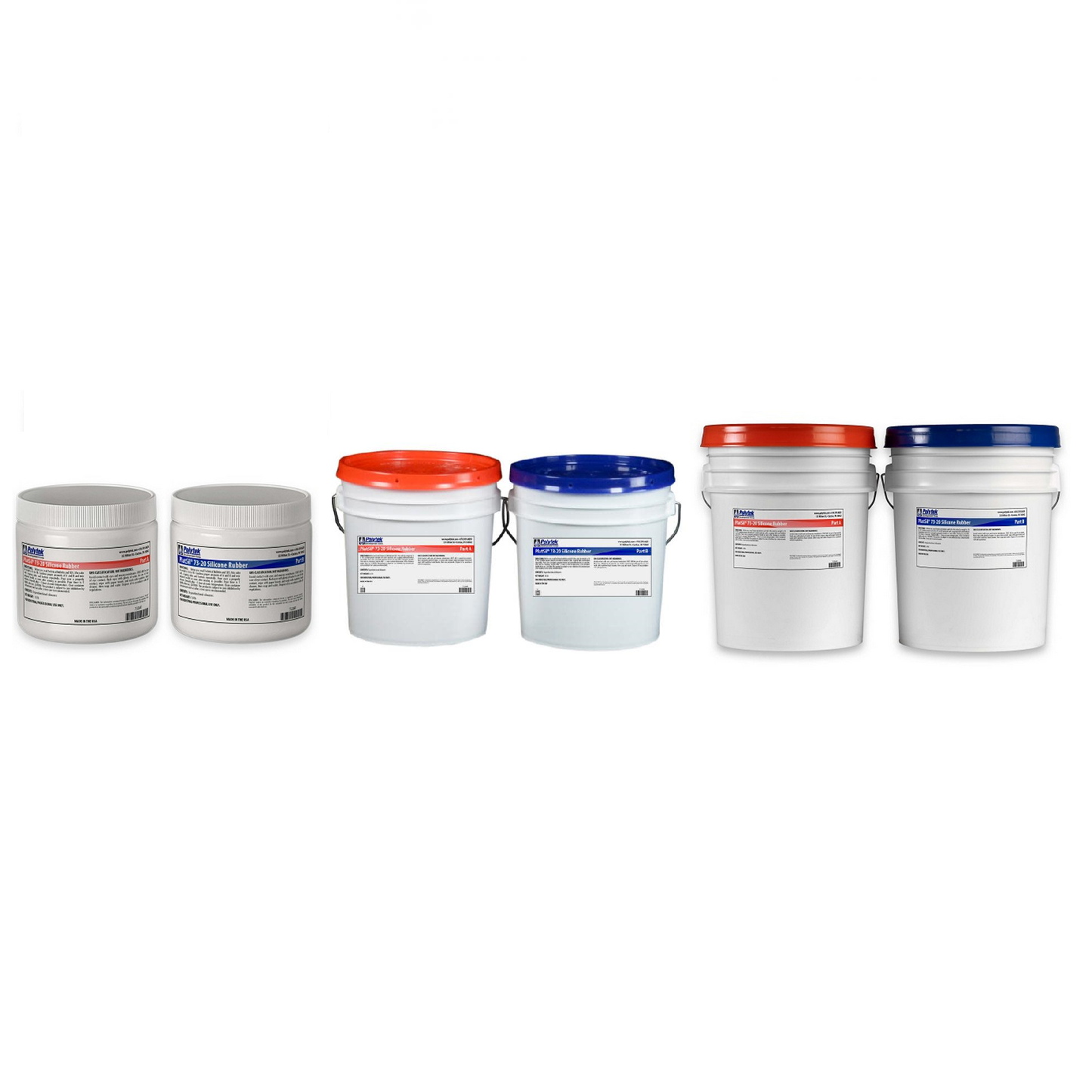

Kit Components
| PlatSil® 73-20 |
Components |

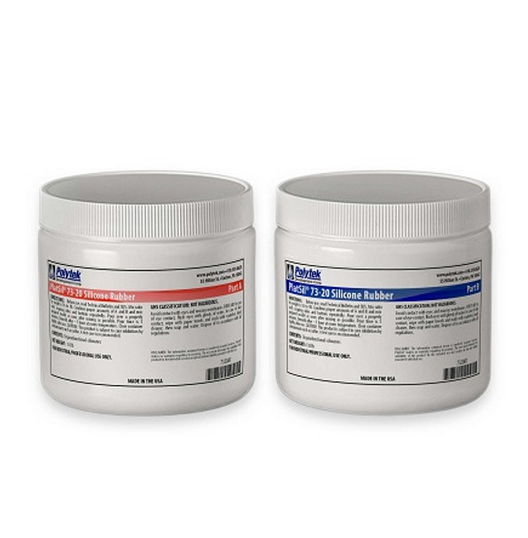

| 2-lb kit includes: |
1 lb of PlatSil® 73-20 Part A (~1 pint)
1 lb of PlatSil® 73-20 Part B (~1 pint) |

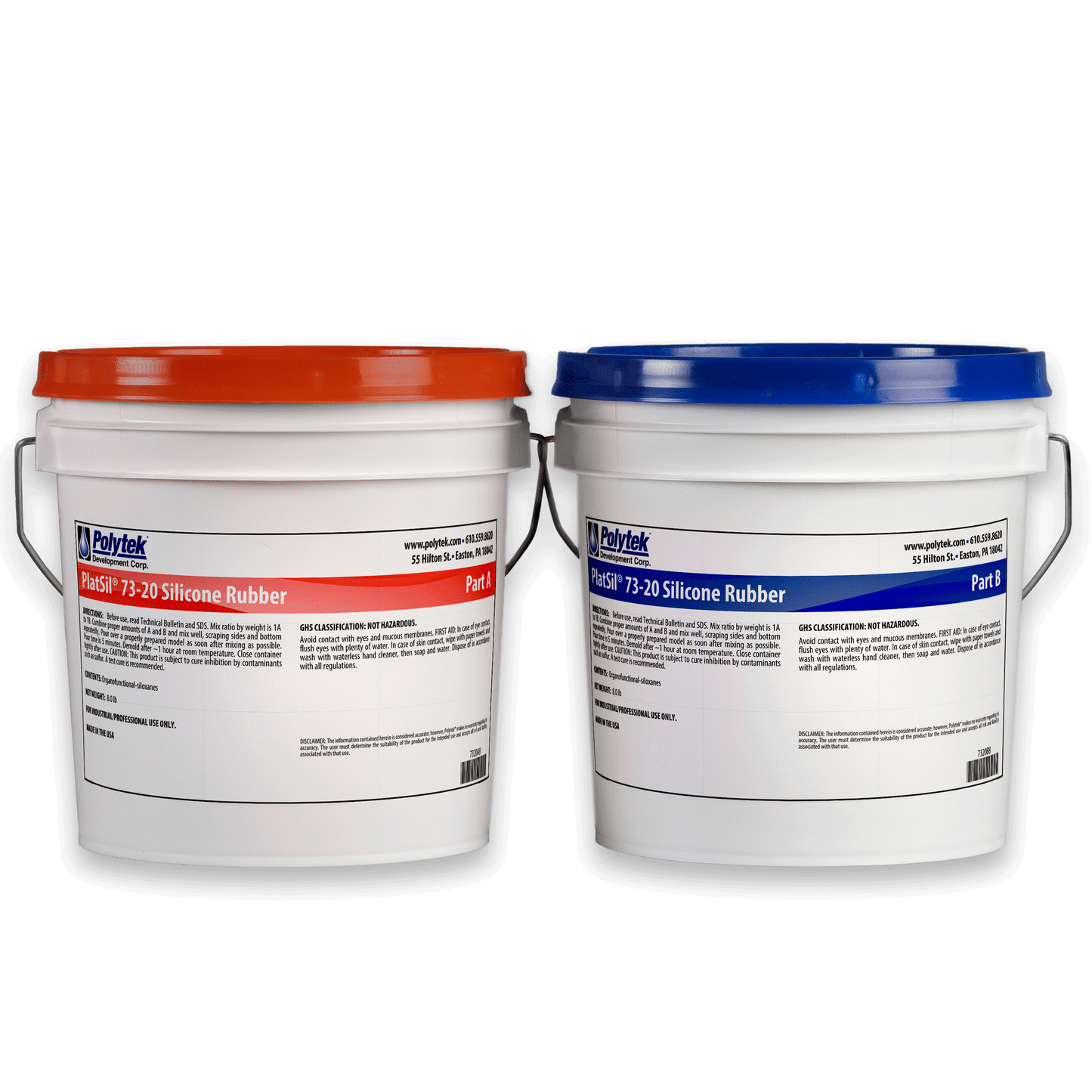

| 16-lb kit includes: |
8 lb of PlatSil® 73-20 Part A (~1 gallon)
8 lb of PlatSil® 73-20 Part B (~1 gallon) |

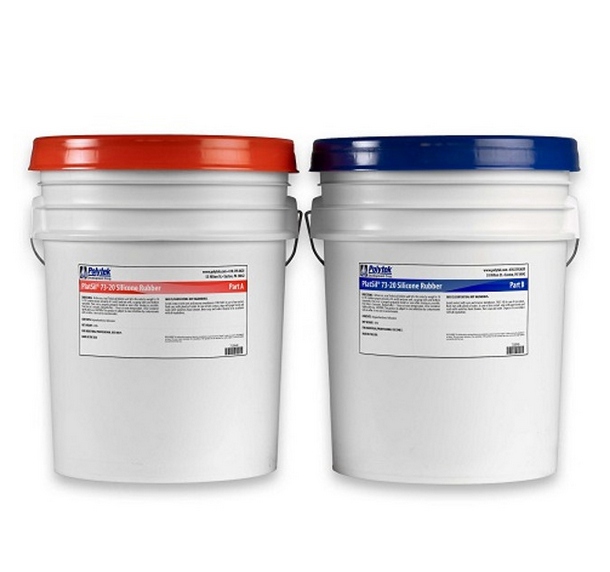

| 80-lb kit includes: |
40 lb of PlatSil® 73-20 Part A (~5 gallons)
40 lb of PlatSil® 73-20 Part B (~5 gallons) |
