West System

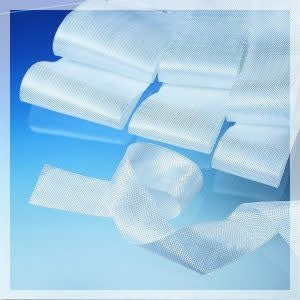

Biaxial Fiberglass Tape 17 oz, 4″ wide x 10′ roll

Biaxial Fiberglass Tape 17 oz, 4″ wide x 10′ roll

Regular price $26.99 USD
Regular price $0.00 USD Sale price $26.99 USD
Sale Sold out
Shipping calculated at checkout.

6 in stock

727 Biaxial Tape

17 oz non-woven E-glass fabric. Two layers ±45° fiber orientation are held together by a light stitching. Flat, non-crimped fibers yield reduced print-thru and higher stiffness than woven fabrics. Ideal for repairs, tabbing, and reinforcing.

Designed for :

  • Durability
  • Abrasion Resistance
  • Impact Resistance
  • Skinning
Product Fabric Weight Single Layer Thickness*
727 Biaxial Fabric 17 oz .035″

*Average of multiple layers applied by hand lay-up

Laminate thickness dictates laminate stiffness. Matching the thickness of the laminate you’re repairing will generally result in similar stiffness to the part you are repairing.

Fiberglass repair tips

A typical fiberglass repair in cross-section

This diagram above illustrates how we recommend laminating a repair after the damaged fiberglass has been removed. It is critical that the scarf angle is set at a minimum ratio of 12:1 and that the patch thickness matches the original laminate. Matching the original thickness ensures that the stiffness will be the same as the surrounding area, reducing the chance of a crack around the repair area.

Creating a scarf angle on the original laminate helps in many ways. It provides a substantial amount of surface area for adhesion and acts as a transition zone so that the difference in properties of the new and original laminate are not concentrated at one point. We suggest a minimum 12:1 scarf ratio between the length of the scarf and the laminate thickness. This ratio applies to both skins when repairing a cored laminate.

—Excerpted from Common Errors in Fiberglass Repair by Jeff Wright, Epoxyworks 38

Beveling Fiberglass in a Transom Repair

The fiberglass thickness determines the bevel length, which is also the distance from the corner to the location of the cuts for removing the fiberglass skin. As mentioned, the cut line will be located to allow the outer edge of the bevel to end before the corner of the transom. The distance of the cut line (and the bevel) back from the corner is 12 times the fiberglass thickness.

A 12-to-1 bevel allows room for multiple layers of fiberglass fabric and epoxy across the cut line to restore strength to the fiberglass skin. If the fiberglass skin is 1/8″ thick, the width of the bevel will be at least 1 ½” long. If the fiberglass is ¼” thick, the cut line will need to be at least 3″ in from the edge of the perimeter to allow for a 3″ bevel. If the original fiberglass skin is reused, the same bevel will eventually be required on each side of the cut after the skin is rebonded to the new core.

Layout the cut line the required distance from the edge of the transom. Remember to measure from the end of the rounded corners where they blend into the flat transom surface.—Excerpted from Repairing Fiberglass Powerboat Transoms by Tom Pawlak, Epoxyworks.
