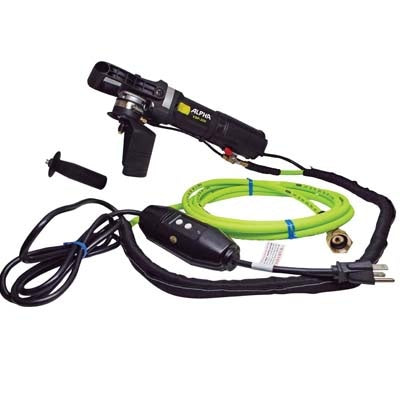

Alpha® has replaced the VSP-120 with the newly designed VSP-320. Although the general appearance of the machines are similar, we have made a major overhaul on these models to make them durable and dependable tools. The major upgrade came in the form of the heavy-duty gear systems that includes the step-down transmission and a bevel and pinion gear to produce the variable speed range of 700 to 2,500 rpm. Thanks to the high-tech machine center, we have all parts precision-machined to reduce noise and vibration during the application. This upgrade ensures a long-lasting tool life and a comfortable application. Other changes include the spindle which is now specially coated to reduce friction extending the life of the oil seals. The water hose is now very flexible & kink-free. The electrical power cord has an inline GFCI. The Hose lengths are now 15 ft. and are bundled by 3 ft. of an EasyOn-EasyOff sleeve that improves the maneuverability of the polisher. The adjustable splash guard and ventilation cap minimize water getting inside the motor housing. This feature is exclusive to Alpha®. The VSP-320 comes with a standard C-Handle for torque-oriented applications such as Profiling and Core Drilling and a standard Side Handle for general edge polishing applications. Lastly, we have eliminated the blow mold case that was difficult to re-pack after you connected all hoses and accessories on the polisher.
Specification |
Data |
Model |
VSP-320 |
Rating |
120 Volts |
Amperage |
7.0A |
Power |
800W |
No Load Speed (Variable) |
700~2500 RPM |
Weight |
7.3 lbs (3.3 kgs) |
Spindle |
5/8"-11 |
Power Supply |
Single-phase AC, 50/60Hz |
Plug Type |
A (120V) |
Cord |
15ft (4.5m) |
Polishing Disc Size |
4” (100mm)
|
Item |
Quantity |
Ground Fault Circuit Interrupter* |
1 |
Flexible Hose w/ Garden Hose Adapter* |
1 |
Wrench |
1 |
C-Handle w/ Mounting Screws* |
1 |
Side Handle (reversible) |
1 |
Extra Carbon Brush Set |
1 |
Ventilation Cap w/Rubber Band* |
1 |
Splash Guard w/Clamp |
1 |
EasyOn-EasyOff Sleeve* |
1 |
*Factory Attached |
1 |
