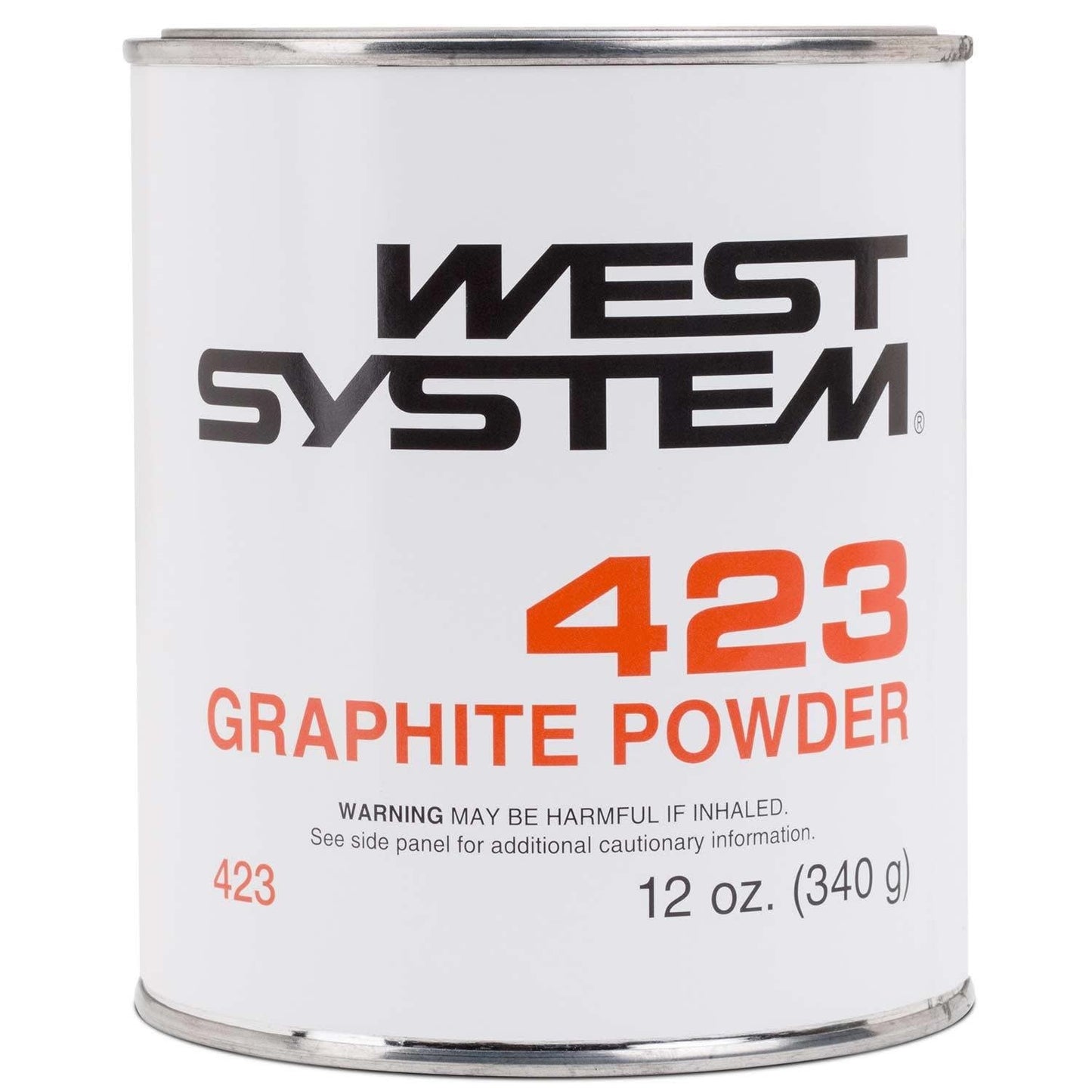

423 Graphite Powder is a fine black powder that can be mixed with epoxy to produce a low-friction exterior coating with increased scuff resistance and durability. Epoxy/graphite is commonly used as a low-load, low-speed bearing surface, as a coating on rudders and centerboards, or on the bottoms of racing craft that are dry sailed. It does not provide antifouling qualities. The epoxy/graphite mixture cures to a black color.
Add to mixed resin/hardener at the rate of 10% by volume or 1.5 tablespoons per 8 fl oz. of epoxy. When using 300 Mini Pumps with 5:1 ratio epoxy mixtures, 10 strokes of 105 Resin and 10 strokes of 205 or 206 Hardener yields 8 fl oz. of epoxy; for 3:1 ratio epoxy mixtures, 9 strokes of 105 Resin and 9 strokes of 207 or 209 Hardener yields 8.1 fl oz. of epoxy.
12 oz can of 423 Graphite Powder will modify approximately one gallon of epoxy.
Composition:
Carbon 80.0% Min.
Particle Size:
+100 Mesh 0.0% Max.
+200 Mesh Trace
+325 Mesh 0.5% Max
MSDS
